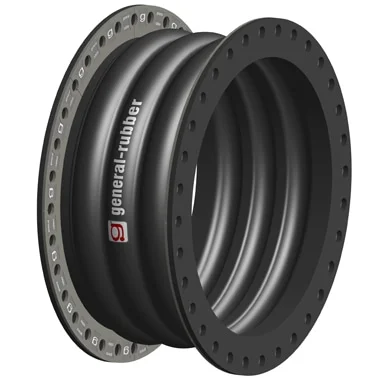

Triple Wide Arch

Style 1103

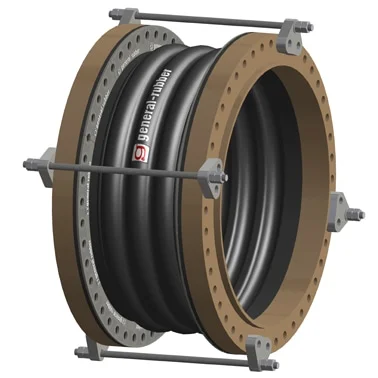

General Rubber’s Styles 1103 and 1203, triple (3) wide arch rubber expansion joints have triple the all-directional movement capabilities with one-third the spring rates of our single arch design. Additionally, they are designed to reduce noise and vibration, have a cycle life in the tens of millions, compensate for misalignments, provide access to piping and equipment and relieve pipe and anchor stresses. Its spool type body is constructed with full rubber flanges, a high-grade leak-proof tube, multiple layers of high-strength tire cord, high tensile steel reinforcement, a seamless cover and hot dip galvanized steel retaining rings. This construction, as a standalone expansion joint, represents the most cost-effective arrangement when used in rigid piping systems with main anchors (MA) and numerous guides at specific spacing. Control units can be externally or internally attached and used as limit rods for secondary restraint or as tie rods when the support structure or adjacent equipment have load limitations.

Features

  • Versatile hand-built construction
  • Triple the movement with one-third the spring rate
  • Standard or custom face-to-face dimensions
  • Available in custom offset arrangements and sizes not shown
  • Virtually eliminates sediment buildup
  • Higher pressure rating than conventional expansion joints
  • Style 1203 designates full vacuum rating (30″ Hg) in all sizes
  • 250°F continuous service standard (400°F available)
  • Hot dip galvanized retaining rings standard
  • Integral flange design, no gaskets required
  • Filled arch design available
  • High strength and simple to install
