Single Wide Arch

Style 1101

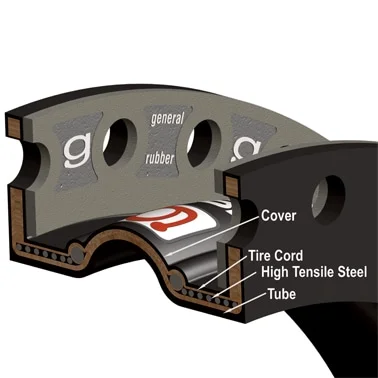

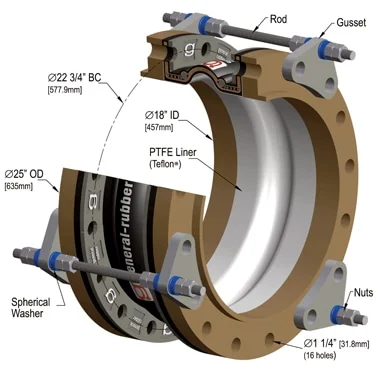

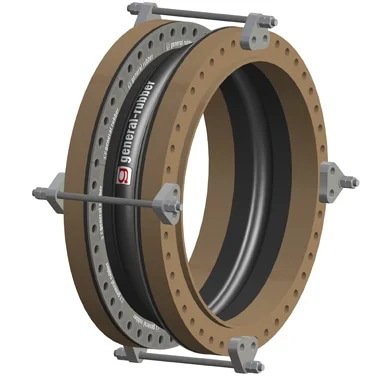

General Rubber’s Style 1101 single (1) wide arch rubber expansion joints are designed to absorb large all-directional movements, reduce noise and vibration, have a cycle life in the tens of millions, compensate for misalignments, provide access to piping and equipment and relieve pipe and anchor stresses. Its spool type body is constructed with full rubber flanges, a high-grade leak-proof tube, multiple layers of high-strength tire cord, high tensile steel reinforcement, a seamless cover, and hot dip galvanized steel retaining rings. This construction, as a standalone expansion joint, represents the most cost-effective arrangement when used in rigid piping systems with main anchors (MA) and numerous guides at specific spacing. Control units can be externally or internally attached and used as limit rods for secondary restraint, or as tie rods when the support structure or adjacent equipment have load limitations.


  • Standard or custom face-to-face dimensions
  • Wide flowing arch design
  • Exceptional all directional movement capability
  • Virtually eliminates sediment buildup
  • Absorbs noise, vibration and shock
  • Higher pressure rating than conventional expansion joints
  • Hot dip galvanized retaining rings standard
  • Other standard drilling available, including ASA 300, DIN, PN, JIS, API, and Navy
  • Excellent chemical and abrasion resistance
  • Full vacuum rating (30″ Hg) for style 1202
  • 250°F continuous service standard (400°F available)
  • Compensates for minor misalignment and offset
  • Low stiffness and deflection forces
  • Integrally flanged design, no gaskets required
  • Simple to install and high strength
  • Provides easy access to piping and equipment
  • Filled arch design available
